Boolean Operation

Performs a logical operation based on a condition

logicandornotEasy0

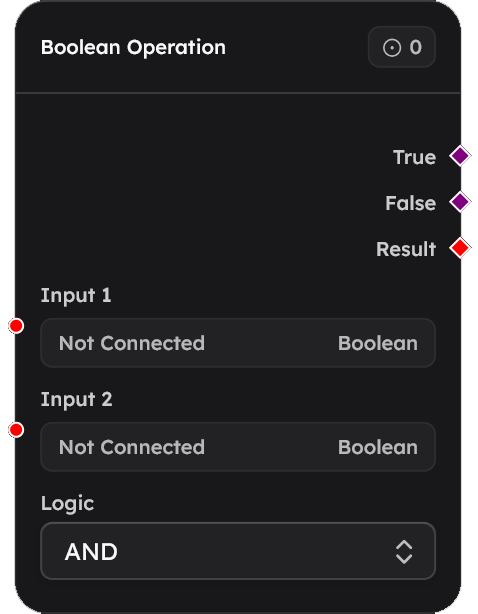

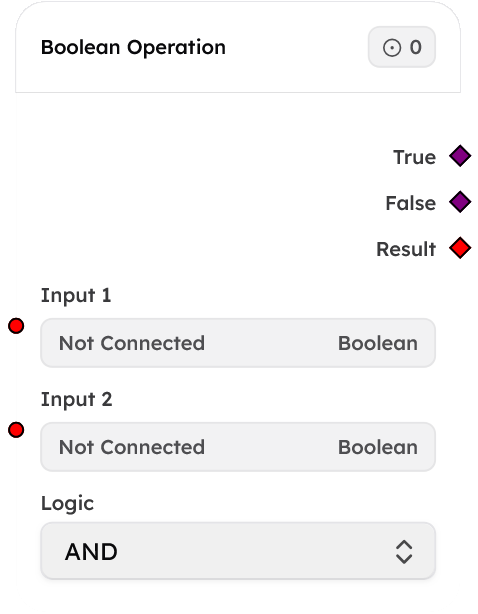

Boolean Operation Node Screenshot

Description

Perform boolean logical operations on boolean values

Common Use Cases

Add complex conditional logic to your agent
Add multiple conditions

Inputs

The input connections this node accepts:

NameDescriptionTypeInput 1First inputBooleanInput 2Second inputBoolean

Outputs

The output connections this node provides:

NameDescriptionTypeTrueThe Flow of the Condition if trueFlowFalseThe Flow of the Condition if falseFlowResultResultBoolean

Fields

The configurable fields this node provides:

NameDescriptionTypeLogicLogic (NOT operation only works on input 1)Value: ANDOptions: AND OR NOTselect
